Acura MDX Bolt Pattern, Rim Size, Hub Bore, Offsets And Tire Size

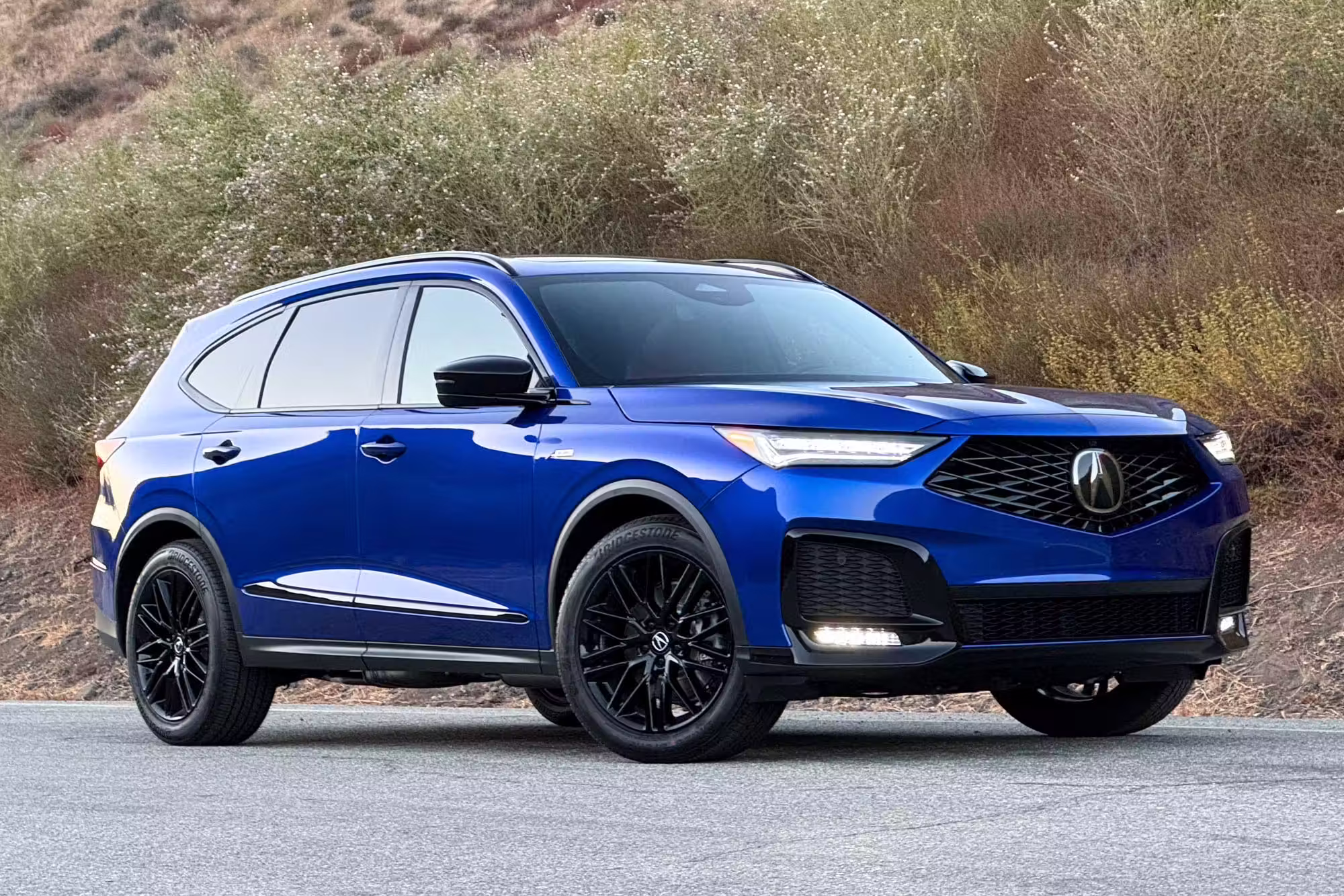

Acura MDX YD4 Facelift [2024 .. 2026]3.0T

• Generation: YD4 Facelift [2024 .. 2026]
• Production: [2024 .. 2025]
• Sales regions: USA+, Canada, China
• Power: 355 hp | 264.7 kW | 360 PS
• Engine: 3.0 L, V6 , Petrol
• Trim Levels: Type S Advance

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×120
• Wheel Fasteners: Lug nuts
• Thread Size: M14 x 1.5
• Wheel Tightening Torque: 127 Nm

Tire	Rim	Offset Rangemm	bar
OE275/40R21 104H	9.5Jx21 ET55	53 – 57	2.4 2.2

Acura MDX YD4 [2021 .. 2024]3.5i

• Generation: YD4 [2021 .. 2024]
• Production: [2021 .. 2024]
• Sales regions: USA+, Canada, Mexico, China, Middle East
• Power: 290 hp | 216 kW | 294 PS
• Engine: 3.5 L, J35Y5, V6 , Petrol
• Trim Levels: MDX, Technology, A-Spec, Advance

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×120
• Wheel Fasteners: Lug nuts
• Thread Size: M14 x 1.5
• Wheel Tightening Torque: 127 Nm

Tire	Rim	Offset Rangemm	bar
OE255/55R19	8.5Jx19 ET55	53 – 57	2.4
OE255/50R20	9Jx20 ET55	53 – 57	2.4

Acura MDX YD3 Facelift [2017 .. 2021]3.0H

• Generation: YD3 Facelift [2017 .. 2021] [USDM]
• Production: [2017 .. 2021]
• Sales regions: USA+
• Power: 321 hp | 239 kW | 325 PS
• Engine: J30Y1, V6 , Hybrid
• Trim Levels: Technology, Advance

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×120
• Wheel Fasteners: Lug nuts
• Thread Size: M14 x 1.5
• Wheel Tightening Torque: 127 Nm

Tire	Rim	Offset Rangemm	bar
OE245/50R20 102H	8Jx20 ET55	53 – 57	2.4
245/50R20 105H	8Jx20 ET55	53 – 57	2.4
265/45R20 104V	8.5Jx20 ET50	53 – 57	2.4 2.2
275/40R21 103V	9Jx21 ET50	53 – 57	2.4

Acura MDX YD3 [2014 .. 2016]3.5i

• Generation: YD3 [2014 .. 2016] [USDM]
• Production: [2014 .. 2016]
• Sales regions: USA+
• Power: 290 hp | 216 kW | 294 PS
• Engine: J35Y, V6 , Petrol

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×114.3 (5×4.5)
• Wheel Fasteners: Lug nuts
• Thread Size: M12 x 1.5
• Wheel Tightening Torque: 108 Nm

Tire	Rim	Offset Rangemm	bar
OE245/60R18 105H	8Jx18 ET55	53 – 57	2.4
OE245/55R19 103H	8Jx19 ET55	53 – 57	2.4
265/55R18 105H	8.5Jx18 ET50	53 – 57	2.4
265/50R19 103V	8.5Jx19 ET50	53 – 57	2.6
245/50R20 101V	8Jx20 ET55	53 – 57	2.6
275/45R20 102V	9Jx20 ET50	53 – 57	2.6

Acura MDX YD2 Facelift [2010 .. 2013]3.7i

• Generation: YD2 Facelift [2010 .. 2013]
• Production: [2010 .. 2013]
• Sales regions: USA+, Canada, Mexico
• Power: 300 hp | 224 kW | 305 PS
• Engine: 3.7 L, J37A, V6 , Petrol

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×120
• Wheel Fasteners: Lug nuts
• Thread Size: M14 x 1.5
• Wheel Tightening Torque: 127 Nm

Tire	Rim	Offset Rangemm	bar
OE255/55R18 104H	8Jx18 ET45	43 – 47	2.2
OE255/50R19 103H	8.5Jx19 ET45	43 – 47	2.4
275/45R19 103V	9Jx19 ET42	43 – 47	2.4
255/45R20 102V	8.5Jx20 ET45	43 – 47	2.4
285/40ZR20 102W	10Jx20 ET35	43 – 47	2.4

Acura MDX YD2 [2007 .. 2009]3.7i

• Generation: YD2 [2007 .. 2009]
• Production: [2007 .. 2009]
• Sales regions: USA+, Canada, Mexico
• Power: 300 hp | 224 kW | 305 PS
• Engine: 3.7 L, J37A, V6 , Petrol

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×120
• Wheel Fasteners: Lug nuts
• Thread Size: M14 x 1.5
• Wheel Tightening Torque: 127 Nm

Tire	Rim	Offset Rangemm	bar
OE255/55R18 104H	8Jx18 ET45	43 – 47	2.2
OE255/50R19 103H	8.5Jx19 ET45	43 – 47	2.4
275/45R19 103V	9Jx19 ET42	43 – 47	2.4
255/45R20 102V	8.5Jx20 ET45	43 – 47	2.4
285/40ZR20 102W	10Jx20 ET35	43 – 47	2.4

Acura MDX YD1 [2001 .. 2006]3.5i

• Generation: YD1 [2001 .. 2006] [USDM]
• Production: [2001 .. 2002]
• Sales regions: USA+
• Power: 241 hp | 180 kW | 245 PS
• Engine: J35A, V6 , Petrol

• Center Bore / Hub Bore: 64.1 mm
• Bolt Pattern (PCD): 5×114.3 (5×4.5)
• Wheel Fasteners: Lug nuts
• Thread Size: M12 x 1.5
• Wheel Tightening Torque: 108 Nm

Tire	Rim	Offset Rangemm	bar
OE235/65R17 103T	6.5Jx17 ET45	43 – 47	2.2
235/60R18 102T	7Jx18 ET45	43 – 47	2.2
255/55R18 103H	8Jx18 ET45	43 – 47	2.2
235/55R19 101H	7Jx19 ET45	43 – 47	2.2
255/50R19 103H	8Jx19 ET45	43 – 47	2.4
255/45R20 101V	8.5Jx20 ET45	43 – 47	2.4
